Products Closed loop stepper driver and motor

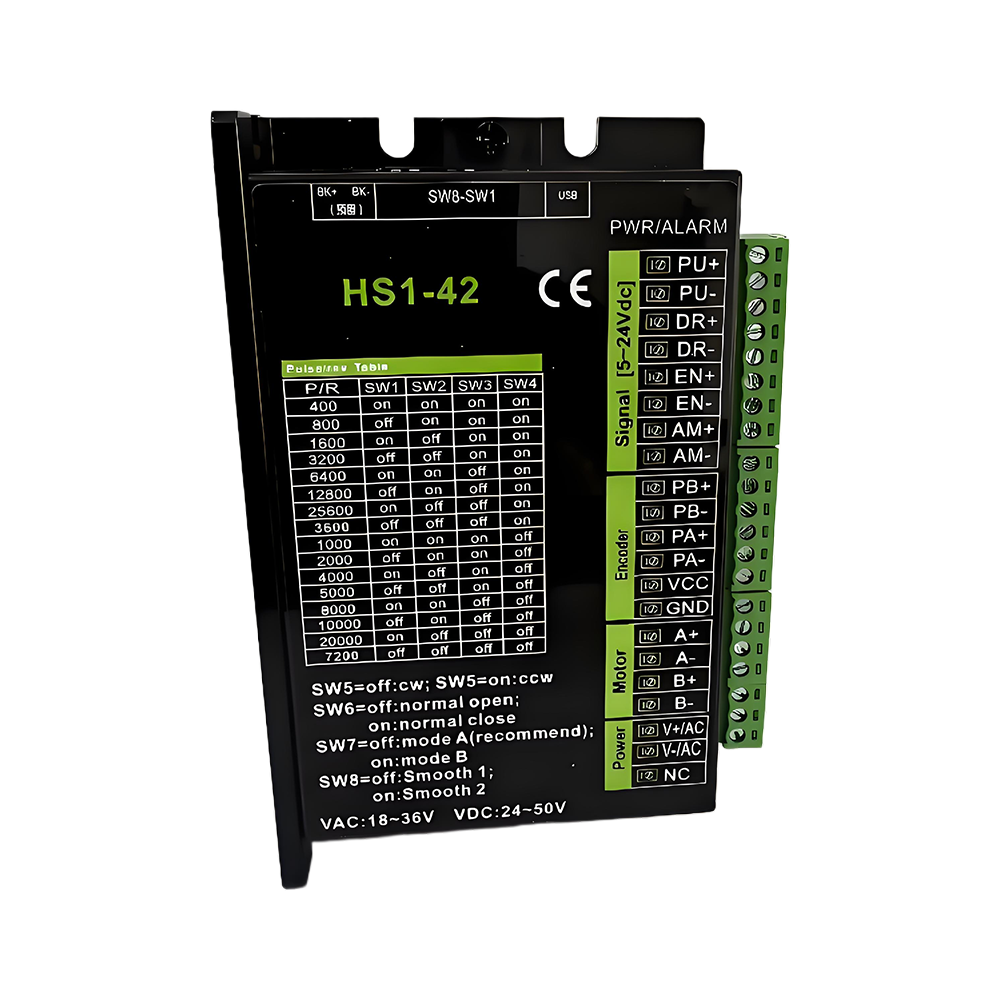

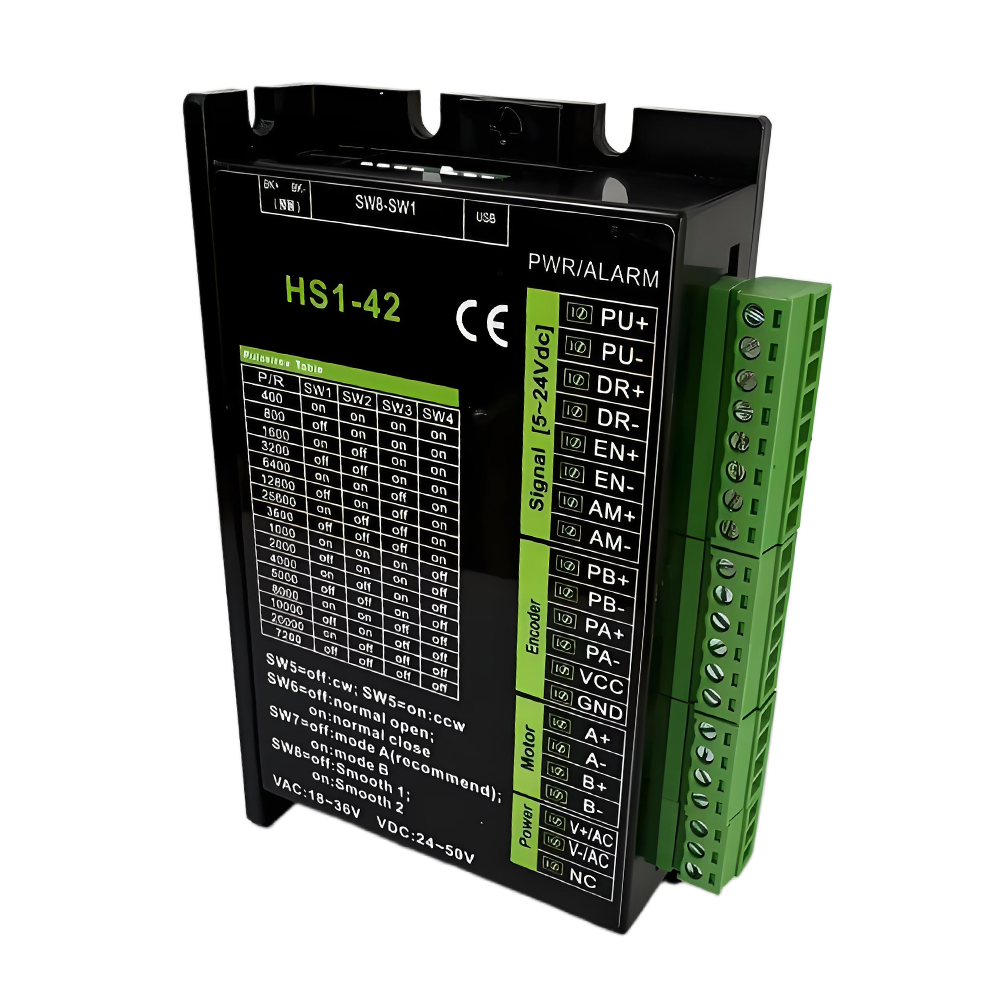

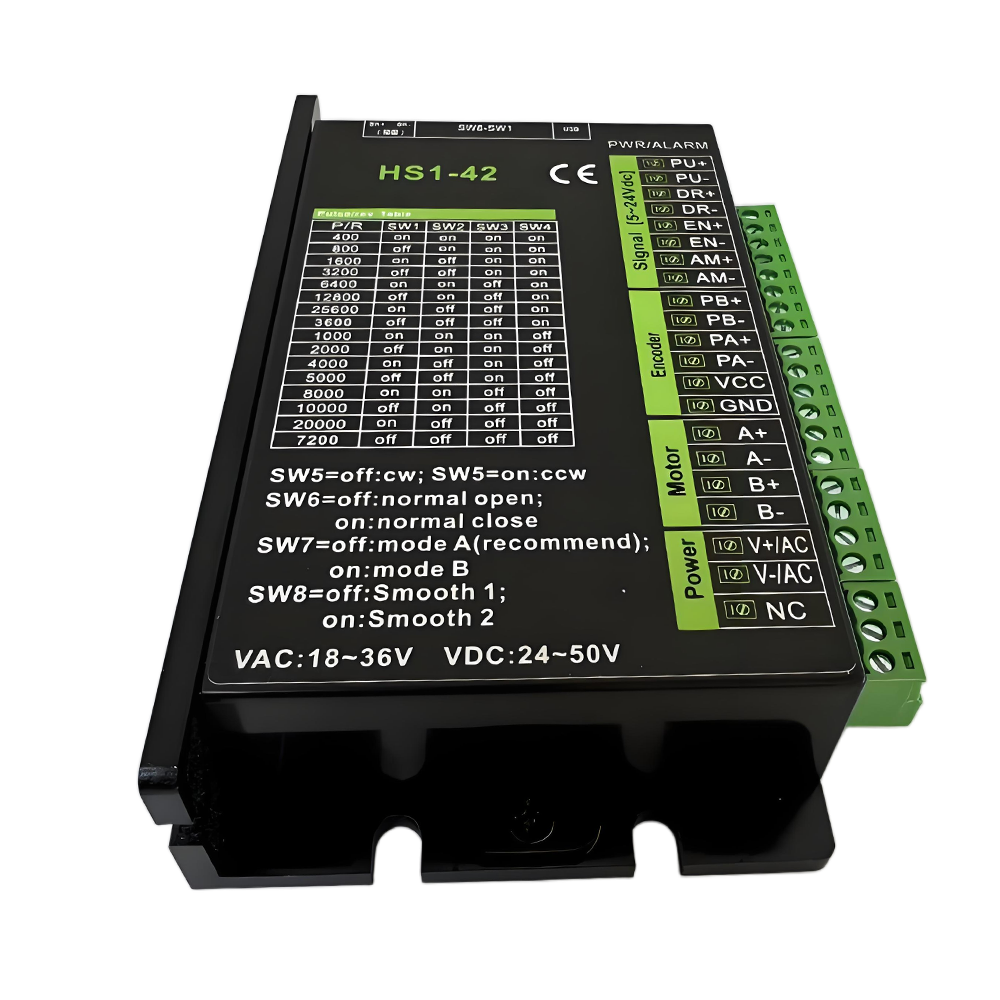

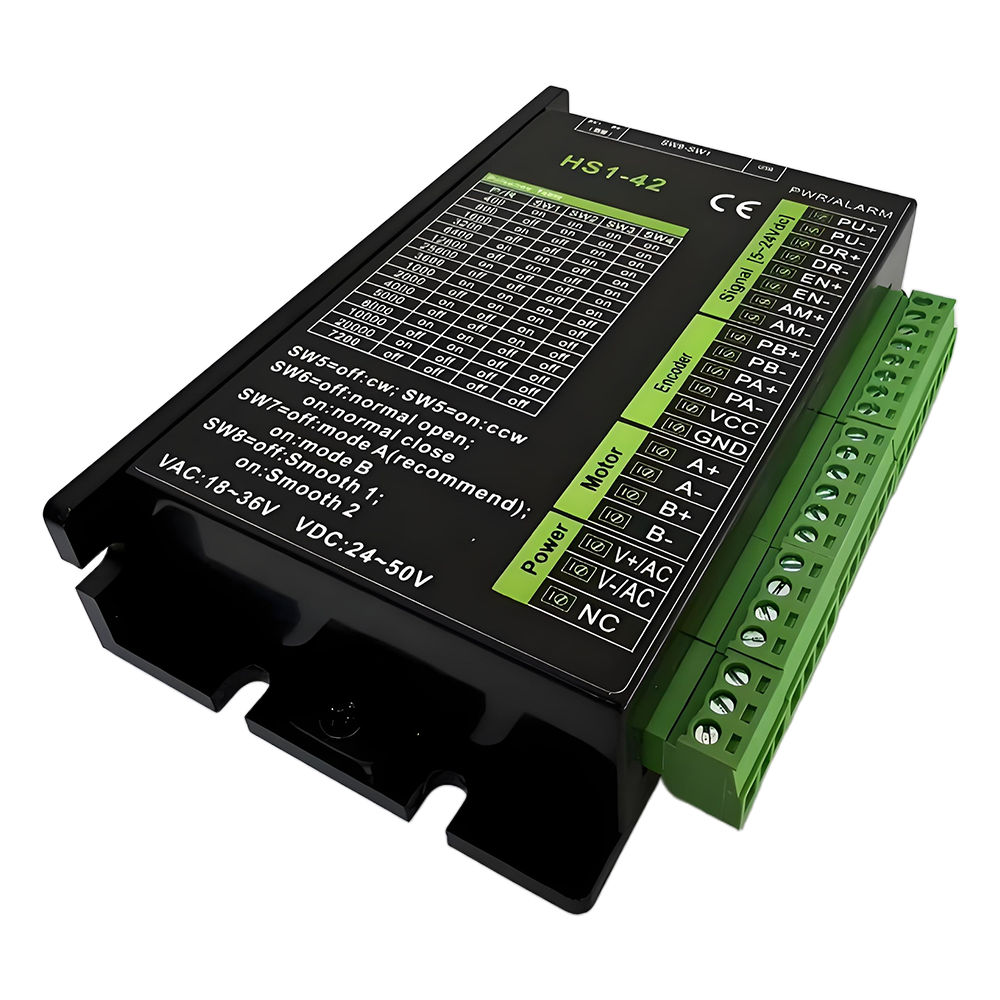

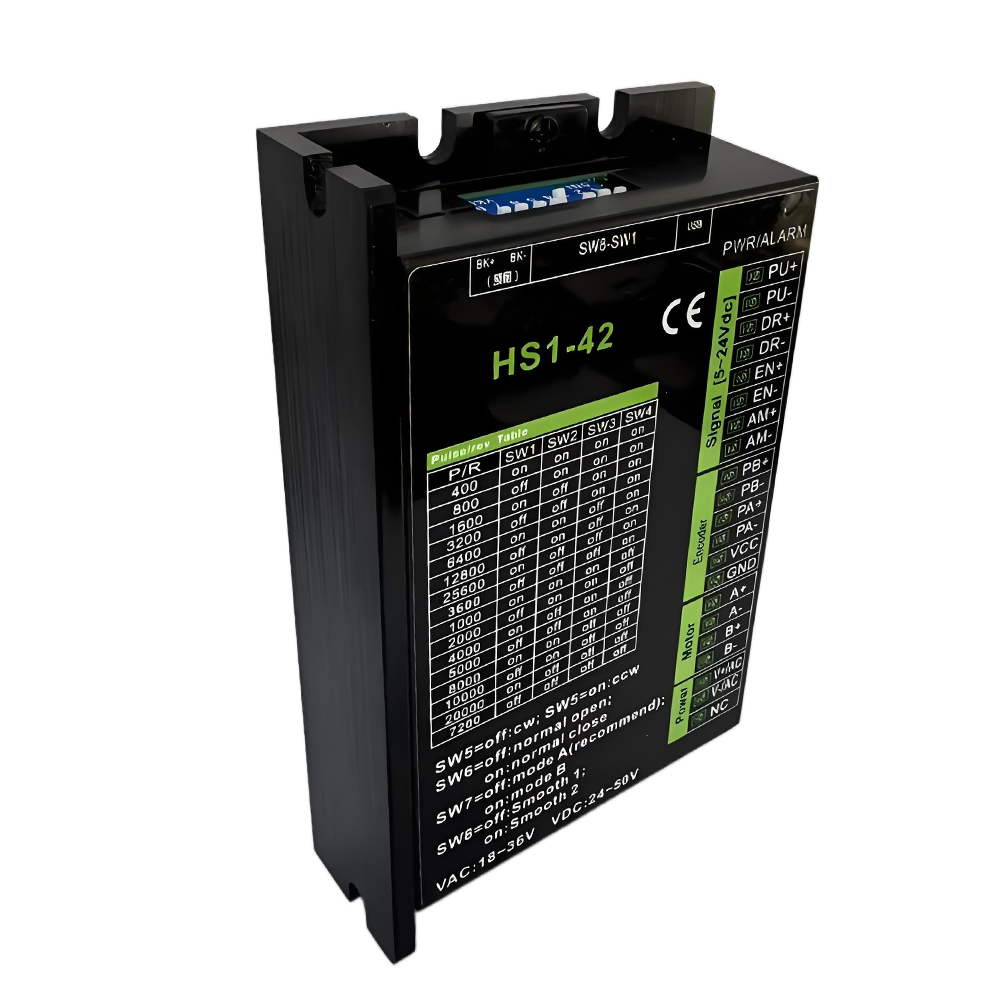

HS1-42

Brand Name	GRMOT
Warranty	3 years
Model Number	HS1-42
Product Name	Motor Driver
Output Current (peak value)	7.2A
Supply Voltage	20-50VDC
Recommend Matching Motor	57/60/86 Motor Size
Working Environment Temperature	-20℃~+50℃

1.1 Product Overview

The HS1-42 AC/DC pulse type closed-loop stepper driver is a newly launched device that uses the latest dedicated motor control digital signal processor. It is an advanced motion control device that combines the advantages of traditional stepper drivers and closed-loop feedback systems. It can provide higher precision, greater torque output, and lower driving noise.

HS1-42 has reserved brake output control function, which can stably output about DC24V voltage within the working voltage range. Users can directly connect the power line of the brake (pay attention to distinguishing positive and negative), without the need for external relays or other devices, which can greatly facilitate user use.

HS1-42 comes with serial port debugging function and communication adopts MINI USB interface. Users can set various parameters such as subdivision, current, and working mode through PC based upper computer debugging software, greatly enriching the practical functions of the product and meeting the needs of the vast majority of applications.

1.2 Product Features

● Small size, easy to install

Reserved brake output control interface, no need for relay intermediate control

New generation 32-bit DSP technology with excellent stability, strong compatibility, and high cost-effectiveness

● External dialing settings for driver subdivision, initial direction, alarm polarity, algorithm, and smoothing coefficient

● Optical isolation differential signal input

Built in fine particles, excellent low-speed stability

The pulse response frequency can reach up to 200KHz (higher can be adjusted)

The subdivision setting range is 400-60000 (any subdivision can be set through the upper computer)

Precision current control significantly reduces motor heating

Low vibration and low noise

● Equipped with alarm protection functions such as overvoltage and over tolerance

● Input voltage range: DC 24V~50V /AC 18V~36V

1.3 Application Fields

Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, plotters, CNC machine tools, automatic assembly equipment, etc. The application effect is particularly good in devices where users expect low noise and high speed.
