Products Open loop digital stepper driver and motor

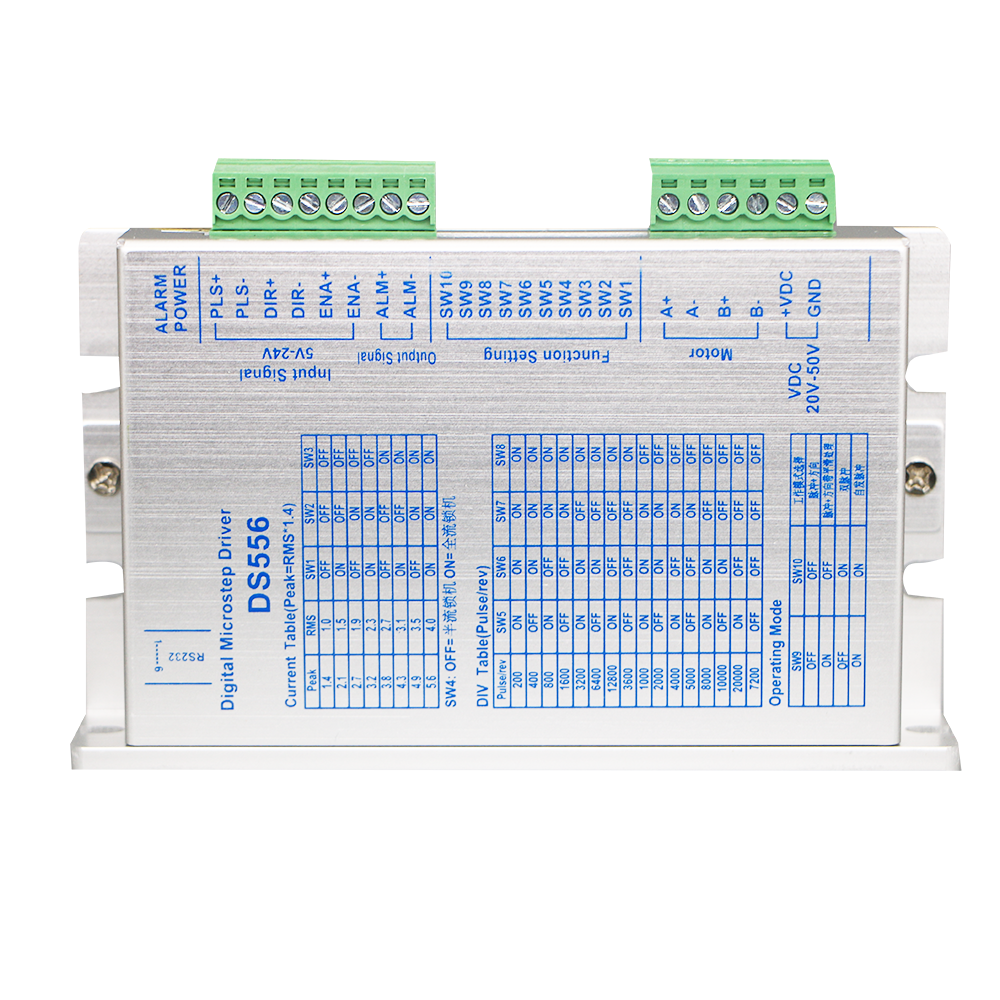

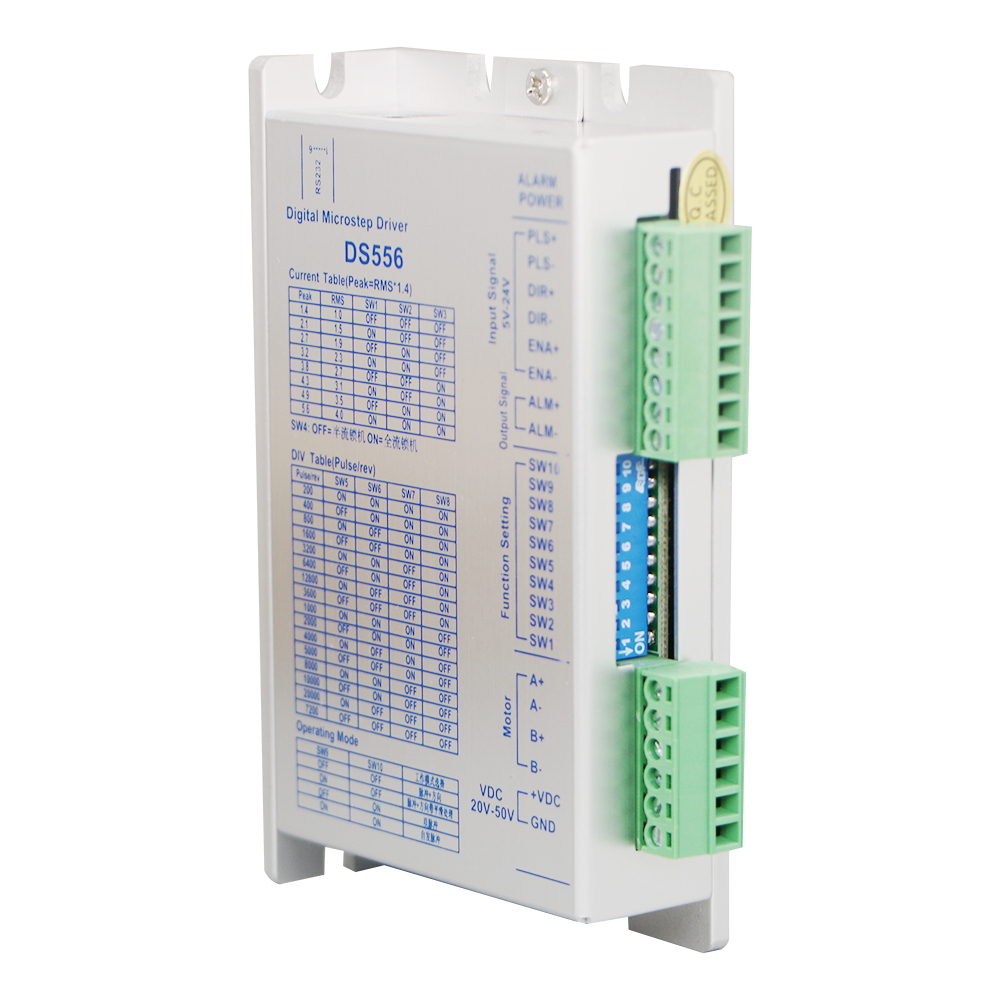

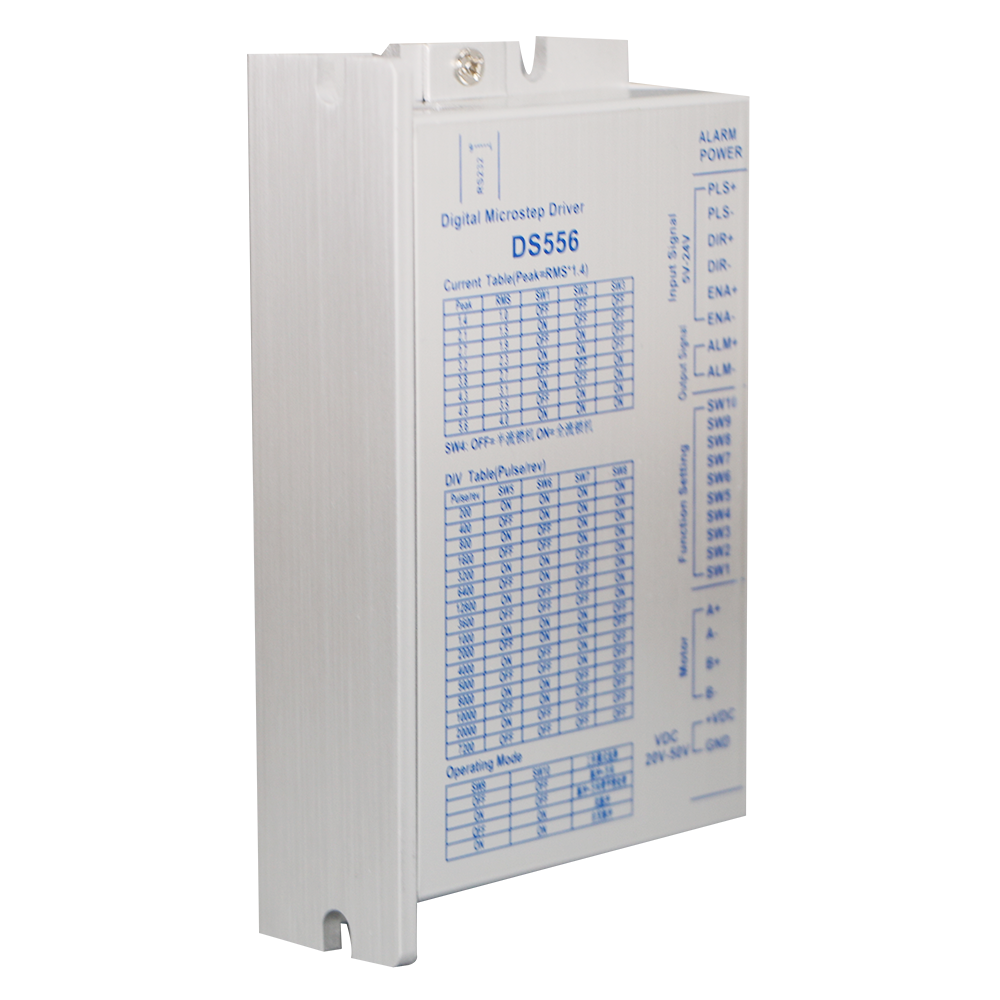

DS556

Brand Name:	GRMOT
Warranty:	3 years
Model Number:	DS556
Product Name:	Motor Driver
Output Current (peak value)	4.2A
Supply Voltage	20-50VDC
Recommend Matching Motor	42/57/86 Motor Size
Working Environment Temperature	-20℃~+50℃

1. Overview

DS556 is a two-phase digital stepper driver with serial port debugging function newly launched by Gree IoT Technology Co., Ltd. It adopts the latest 32-bit DSP control technology and integrates MODBUS-RTU standard protocol specifications. Users can set multiple parameters such as subdivision and working mode within 200-40000 through the upper computer debugging software, greatly enriching the practical functions of the product and meeting the application needs of most occasions.

The DS556 driver adopts a servo like control principle, integrating vector control technology, built-in micro segmentation technology, and adaptive filtering technology, greatly optimizing the performance of the stepper motor. It runs smoothly at low, medium, and high speeds with low noise. The precise and smooth pure sine current vector control technology effectively reduces motor heating.

The driving voltage range of DS556 driver is DC20~50V, suitable for two-phase hybrid stepper motors with peak current below 5.6A and outer diameter of 42~86mm.

2. Characteristics

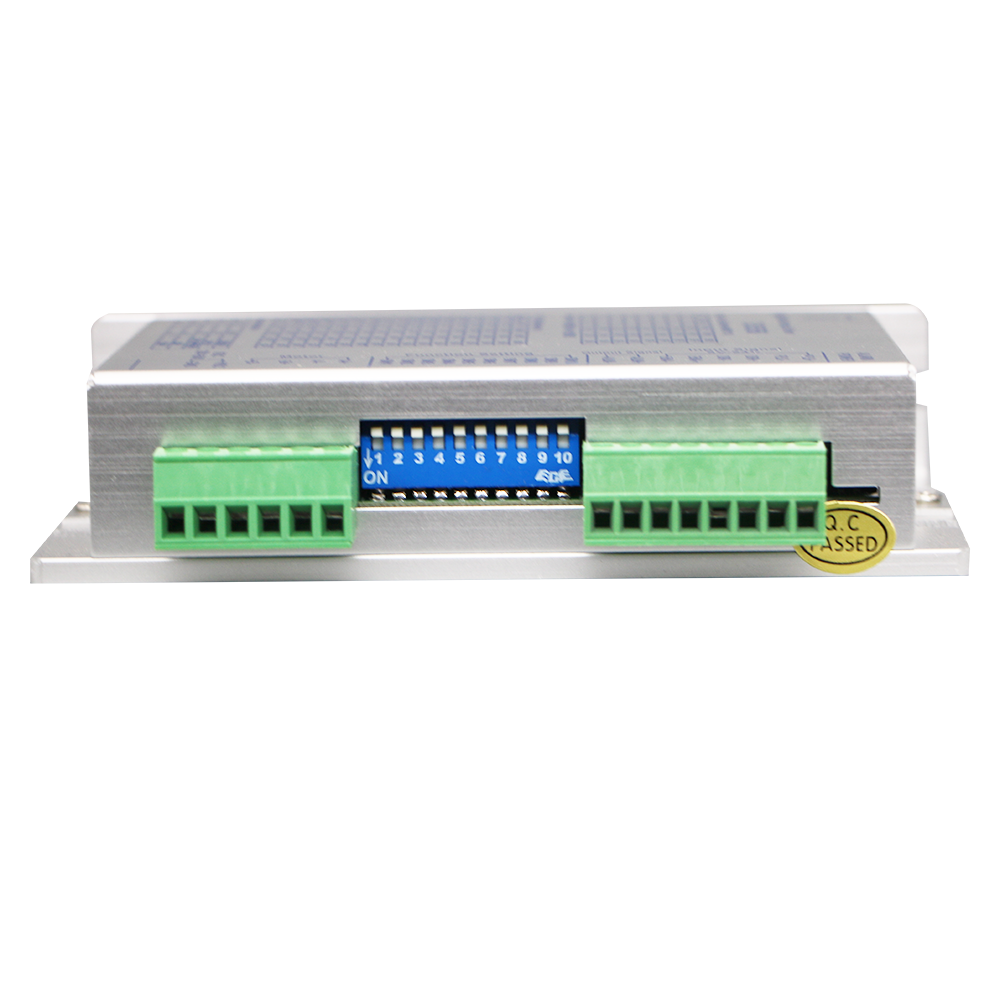

● Equipped with serial port debugging function ● External dialing to select driver working mode

● New 32-bit DSP technology ● Small size, easy to install

● Can drive 4, 6, and 8-wire two-phase stepper motors ● Optical isolation differential signal input

● Built in micro segmentation ● Pulse response frequency up to 200KHz (higher adjustable)

● Subdivision setting range 200-40000 ● Current can be set arbitrarily

● Precise current control greatly reduces motor heating ● Low vibration and low noise

● Automatic halving of current when stationary ● Equipped with overvoltage, undervoltage, overcurrent and other protection functions

3. Application Fields

Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, plotters, CNC machine tools, automatic assembly equipment, etc. The application effect is particularly good in devices where users expect low noise and high speed.
