1. Overview

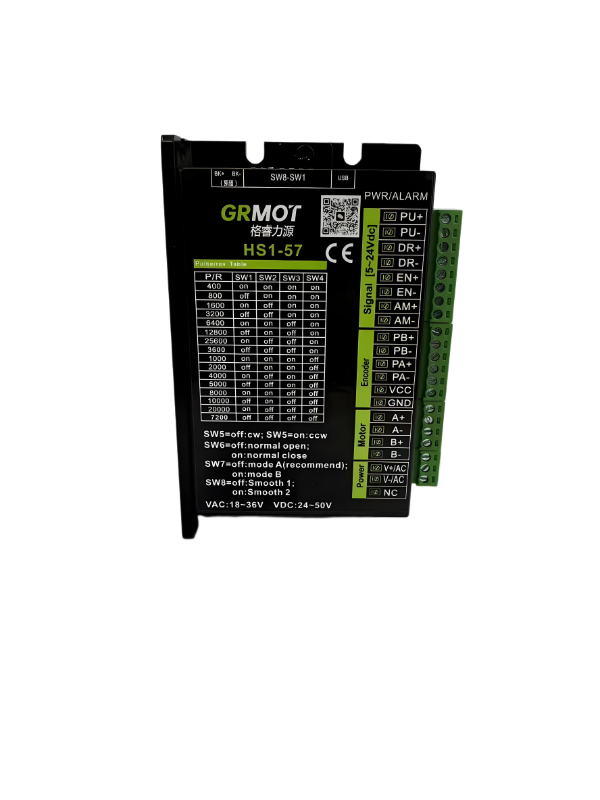

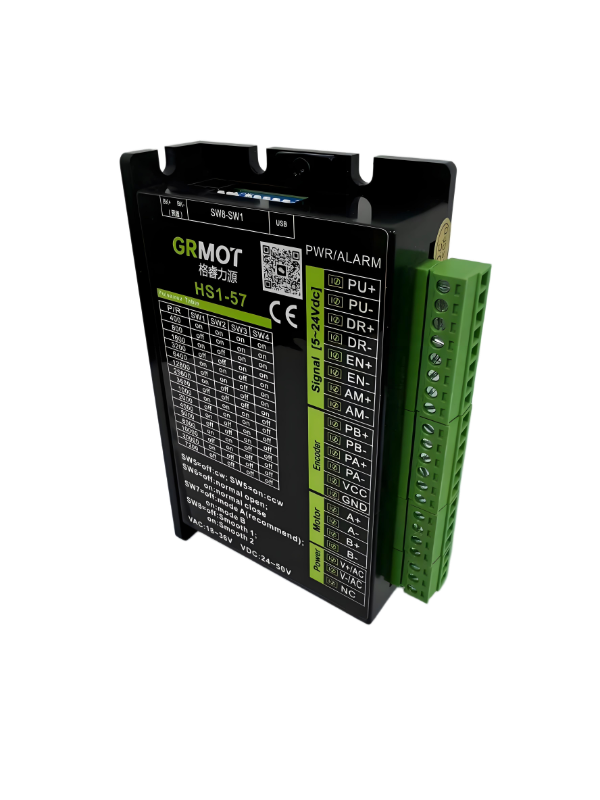

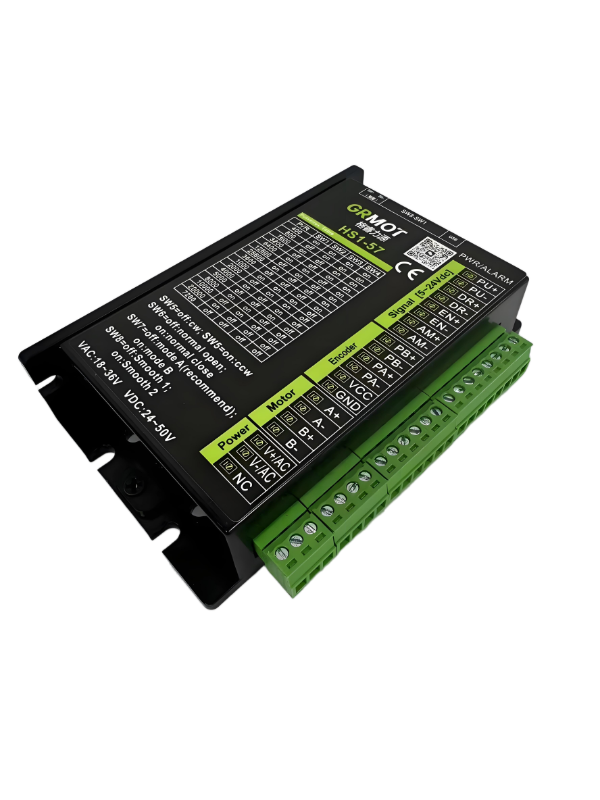

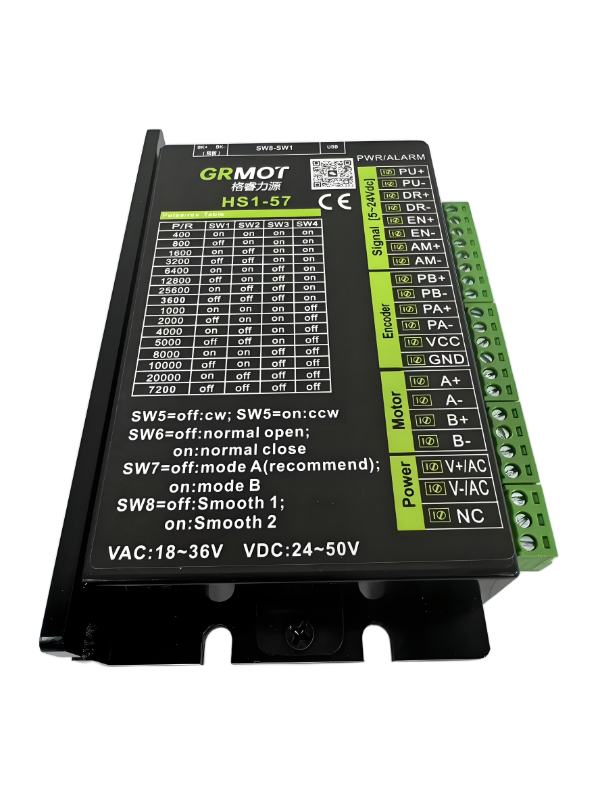

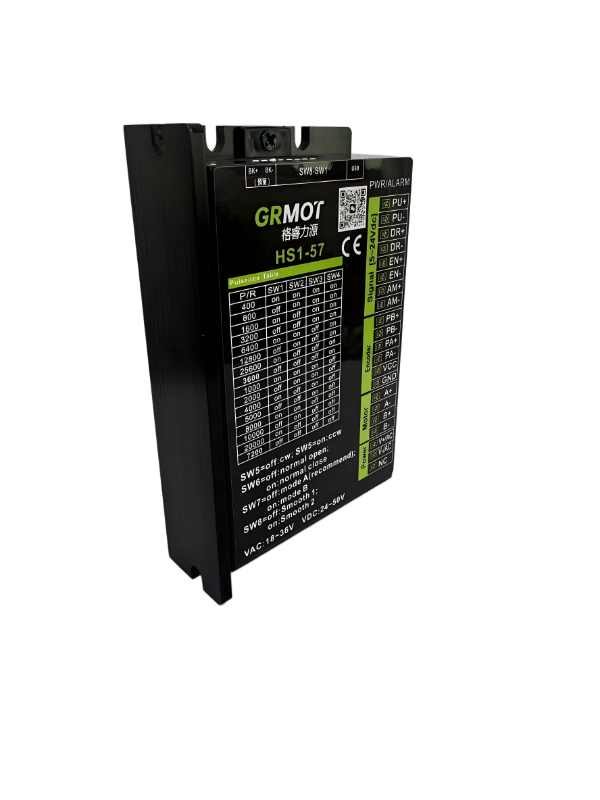

HS57 is the latest digital hybrid stepper servo driver with serial port debugging function launched by Gree IoT Technology Co., Ltd. It adopts the latest 32-bit DSP control technology and integrates MODBUS-RTU standard protocol specifications. Users can set multiple parameters such as subdivision and working mode within 200-40000 through the upper computer debugging software, greatly enriching the practical functions of the product and meeting the application needs of most occasions.

The HS57 driver adopts a servo like control principle, which is compatible with the dual advantages of open-loop stepper and servo systems, completely solving the problem of step loss in open-loop stepper and greatly improving the performance of the stepper system, while reducing motor heating and low-speed vibration. Compared to servo systems, it greatly reduces the difficulty of debugging, has the advantages of fast start stop and vibration free shutdown, and is small in size, low in cost, and high in cost-effectiveness, which can meet the needs of the vast majority of applications.

2. Characteristics

● Equipped with serial port debugging function ● External dialing to select driver working mode

● New 32-bit DSP technology ● Small size, easy to install

● Optical isolation differential signal input ● Built in micro segmentation

● Pulse response frequency can reach up to 200KHz (higher adjustable) ● Subdivision setting range of 200-40000

● Precise current control greatly reduces motor heating ● Low vibration and low noise

● Automatic halving of current when stationary ● Equipped with overvoltage, undervoltage, overcurrent and other protection functions

3. Application Fields

Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, plotters, CNC machine tools, automatic assembly equipment, etc. The application effect is particularly good in devices where users expect low noise and high speed.
