1.1 Overview

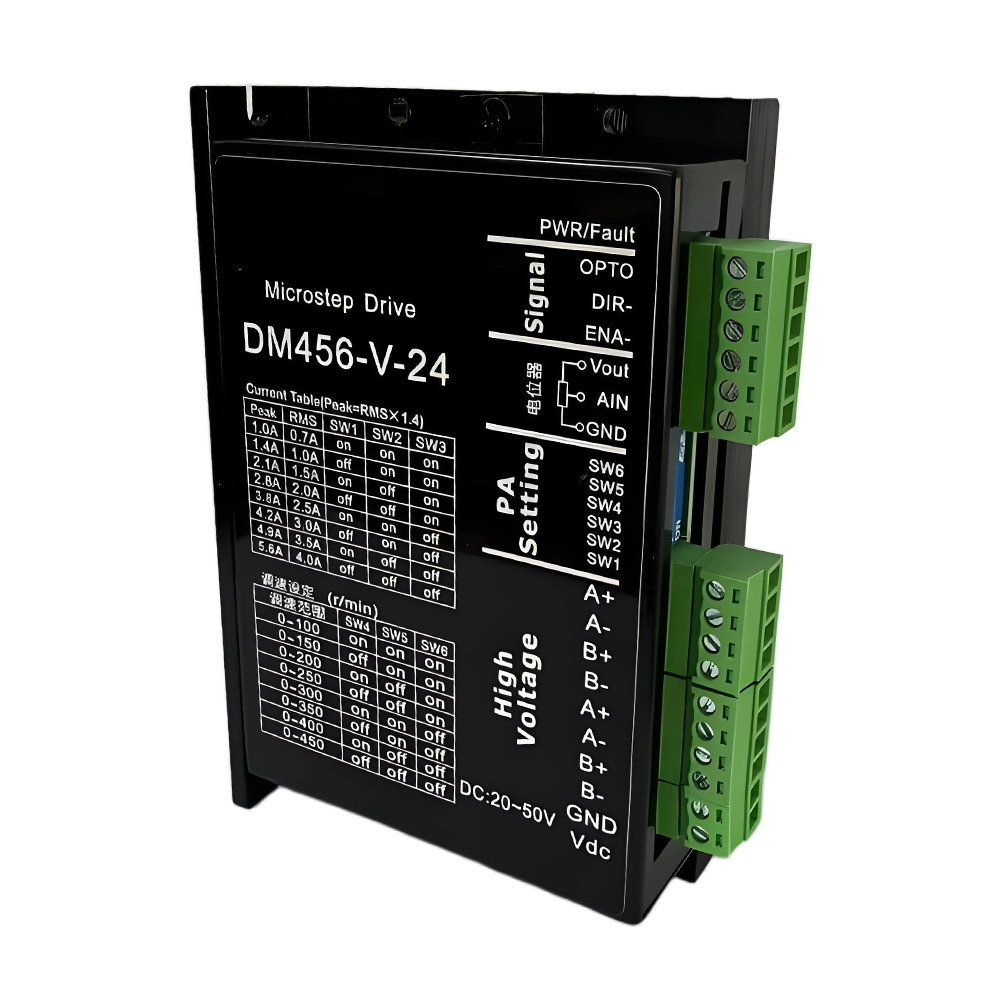

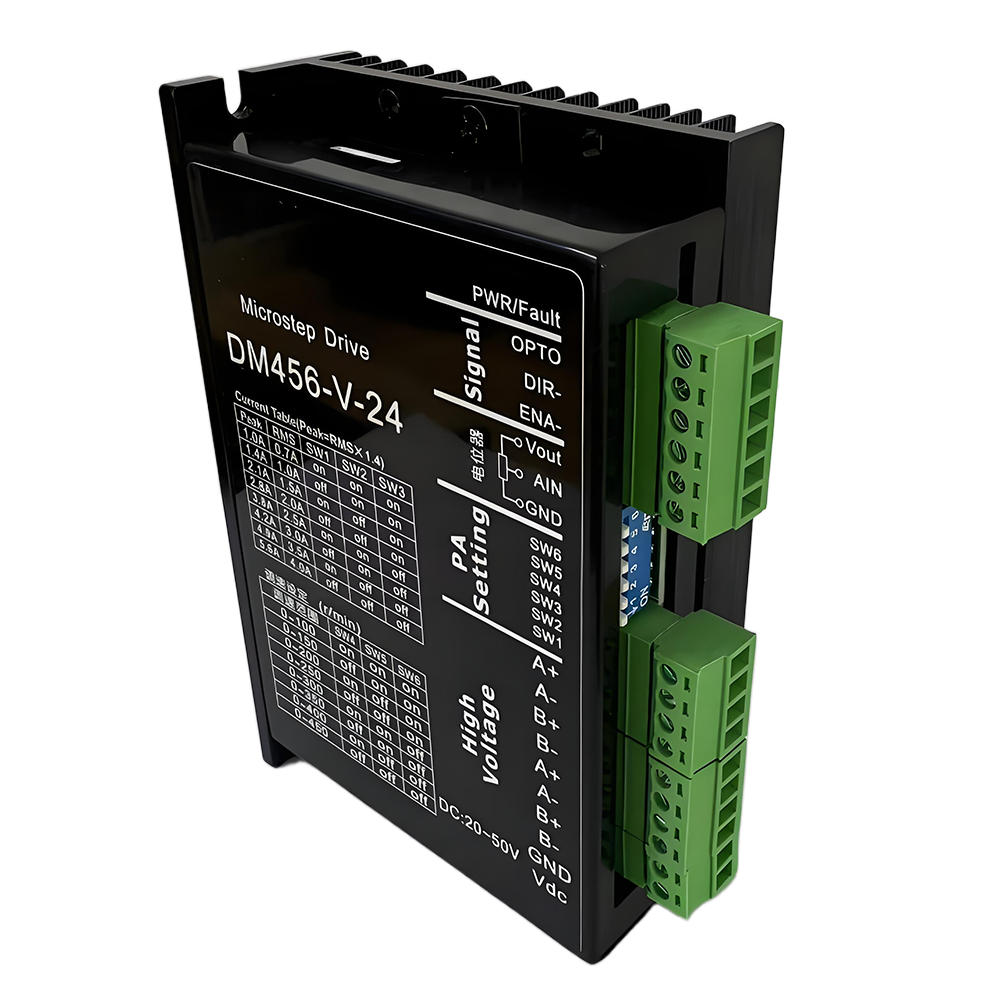

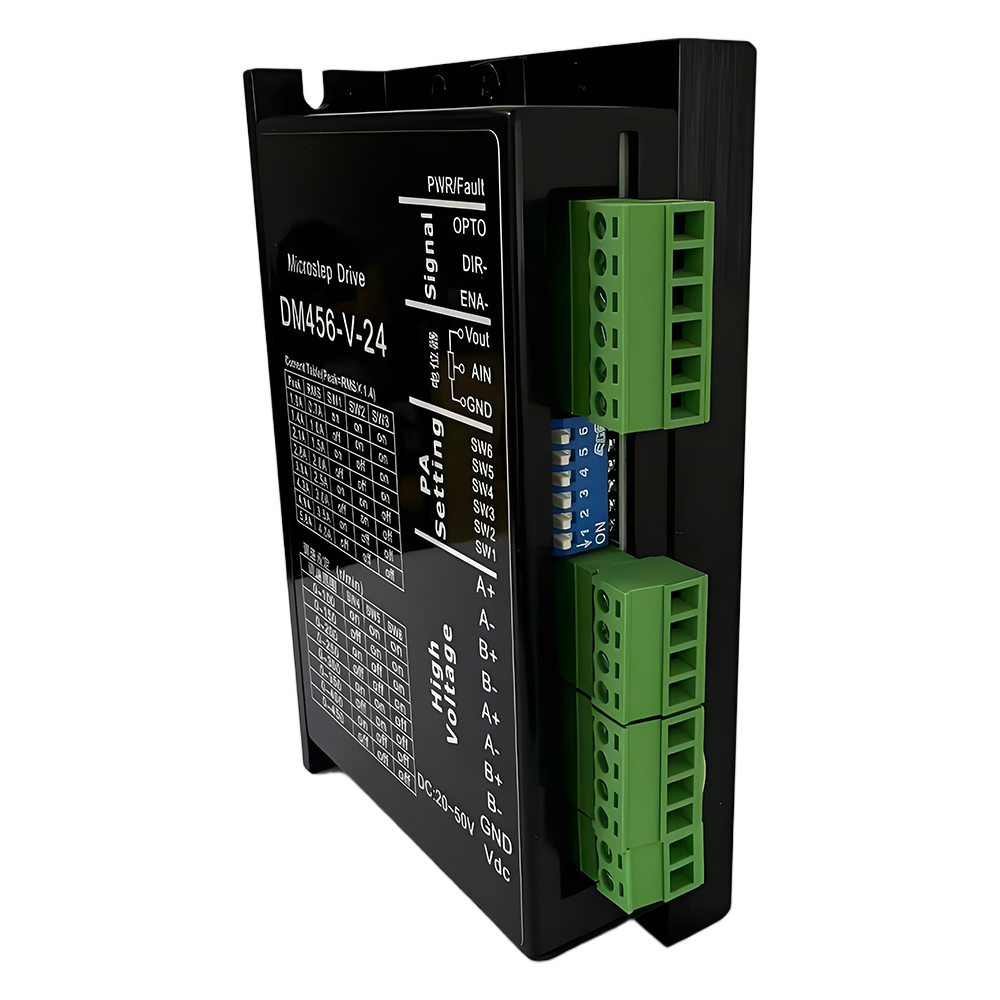

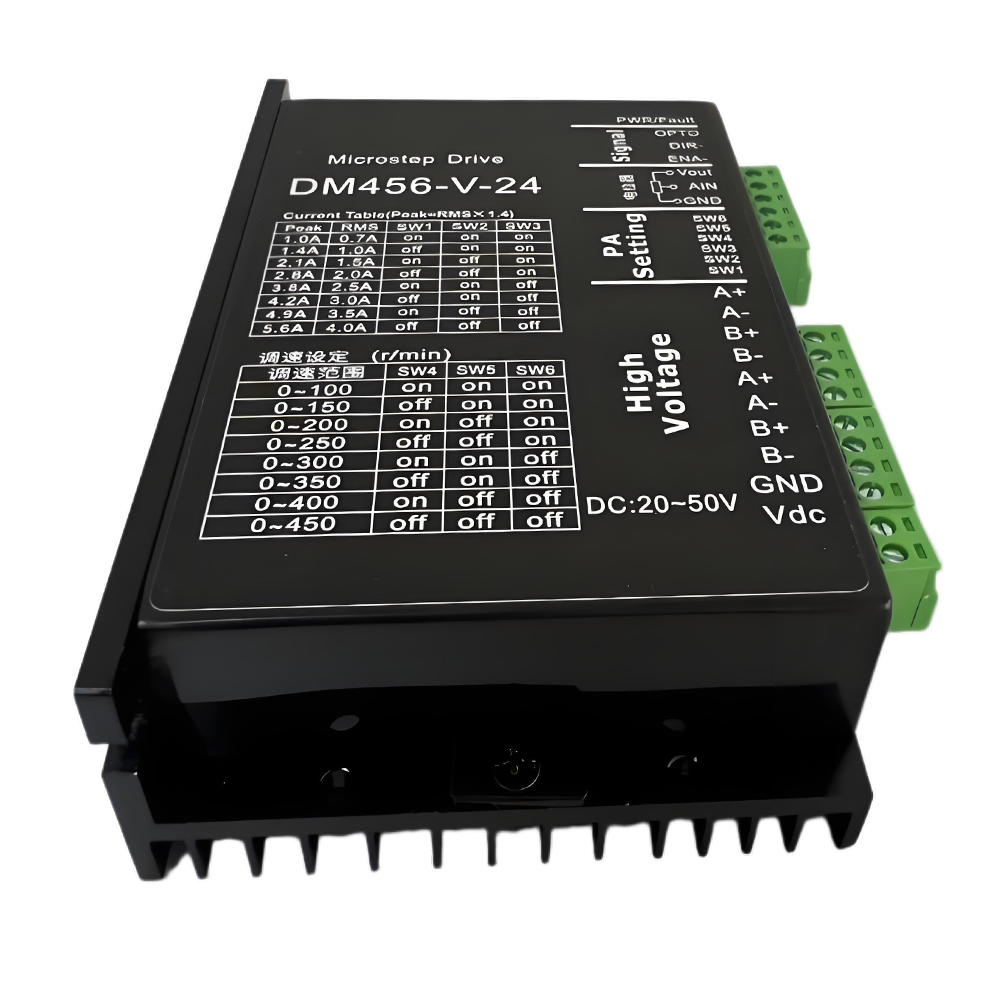

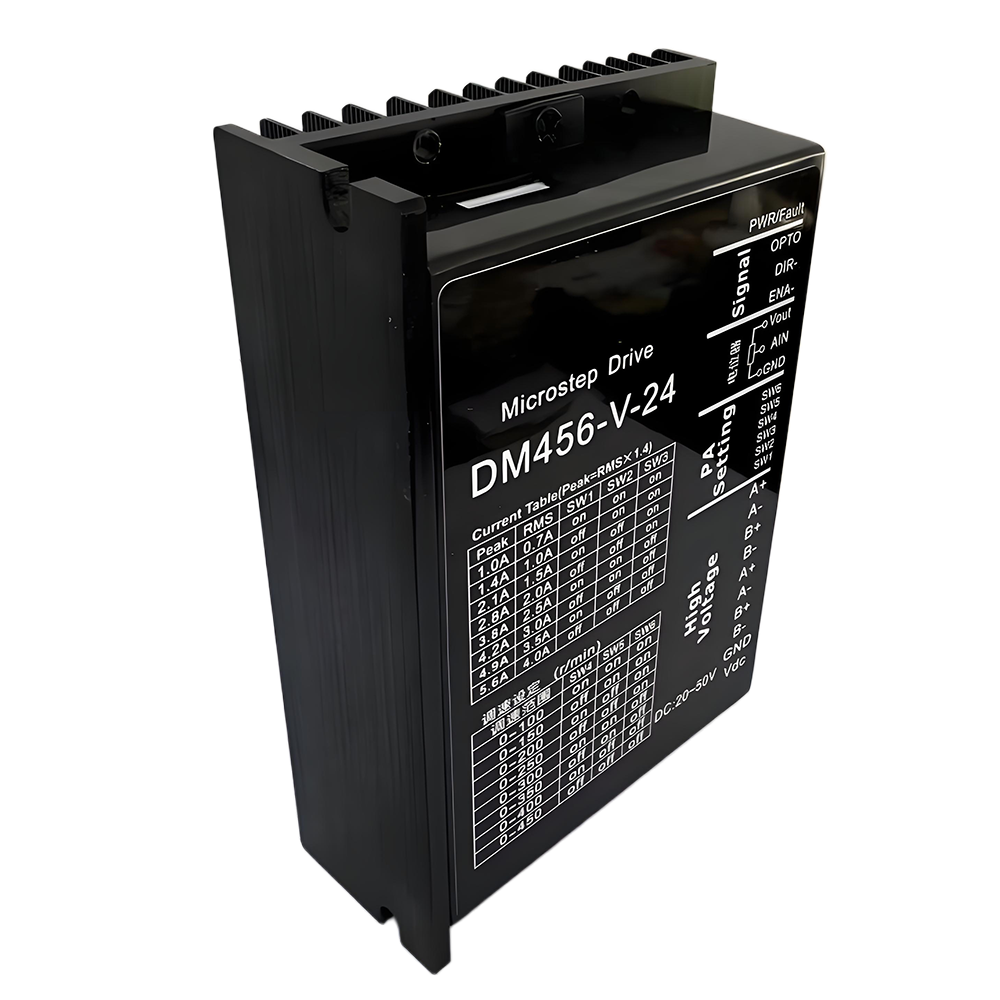

DM456-V24 is an analog speed control product launched by Gree IoT Technology Co., Ltd. It can simultaneously connect two motors to achieve synchronous speed control function. The external 24V starting and direction signal controls the motor's starting and reversing. The motor's operating speed is adjusted by an external 10K potentiometer, and the maximum operating speed is set by dialing the code.

The DM456-V24 drive adopts a servo like control principle, integrating vector control technology, built-in micro segmentation technology, and adaptive filtering technology, greatly optimizing the performance of the stepper motor. It runs smoothly at low, medium, and high speeds with low noise. The precise and smooth pure sine current vector control technology effectively reduces motor heating. It has extremely high cost-effectiveness and can meet the application needs of the vast majority of occasions.

The normal driving voltage range of DM456-V24 driver is DC24-50V, suitable for two-phase hybrid stepper motors with peak current below 5.6A and outer diameter of 42-86mm.

1.2 Characteristics

● New 32-bit DSP technology ● Easy to install

● Can drive 4, 6, and 8-wire two-phase stepper motors ● Optical isolation differential signal input

● Built in micro segmentation ● Pulse response frequency up to 200KHz (higher adjustable)

● Precise current control greatly reduces motor heating ● Low vibration and low noise

● Automatic halving of current when stationary ● Equipped with overvoltage, undervoltage, and phase loss protection functions

1.3 Application Fields

Suitable for various small and medium-sized automation equipment and instruments, such as engraving machines, marking machines, cutting machines, plotters, CNC machine tools, automatic assembly equipment, etc. The application effect is particularly good in devices where users expect low noise and high speed.
